DIY: How to Make a Cardboard Gasket

Difficulty Level

Tools/Supplies Needed:

• oil
• razor knife
• ruler
• flat cardboard/paperboard
• nut and bolt

Procedure:

• first apply a small amount of oil with your finger on the surface you want to copying
• stamp that surface onto the cardboard, typically on the inside face of the cardboard where there is no shinny printed surface as it transfers better
• leave it there for a moment, applying medium pressure, then remove
• you should be able to see the outlined surface
• if you leave it there for a moment longer, the oil will soak in and become darker, therefore being easier to see
• using a razor knife, cut the outer and inner edges of the gasket
• be sure you use a sharp knife, otherwise the cardboard will drag and create a rough edge
• for the bolt holes, we can cut those using a nut and bolt to the appropriate size
• place the nut below where the hole should be, then place the bolt on the other side and hammer it down
• you may need to rotate the bolt around the edge of the hole to help cut the cardboard
• once you've cut the one, if possible install the gasket on the object and insert a bolt through it to align it into place
• then proceed to punch out the next hole in place, this ensure there will be no alignment issues with the bolt holes.
• when installing the newly made gasket, you can apply some gasket sealant, but it isn't necessary
• ensure that both sides of the gasket surface on the surround objects are smooth.

Frequently Asked Questions (FAQ):

Will the fuel damage the cardboard?

No it will not.

How long will these type of homemade gaskets last?

If done correctly, they will last as long as a purchased gasket.

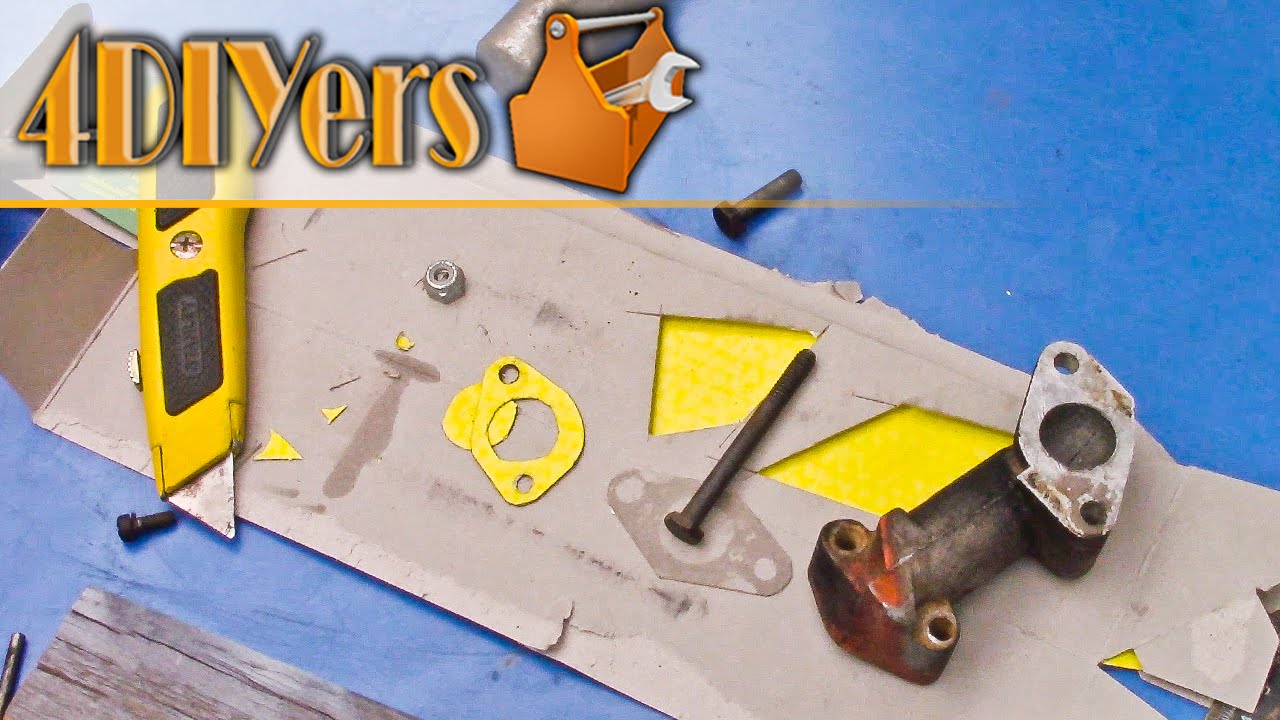

Video tutorial on how to make a cardboard gasket. The type of cardboard that can only be used for this particular gasket is flat cardboard or paperboard which is typically found on cereal boxes, snack packaging, or what I'm using here is from auto parts packaging In the past I've used this technique on throttle bodies, intake manifolds, carburetors, valve covers, etc. This type of gasket cannot be used on high heat applications such between the block and head or on exhaust components. Here I'll be making new gaskets for my snowblower for between the carburetor and intake manifold, and then between the intake manifold and block.
